Add a FPLD

Convert a pipe row in the Pipes table into a FPLD, then either create a custom FPLD or pick one from the FPLD library.

Convert a pipe to a FPLD

1. Select any cell in the row you want to convert.
2. Select Convert, then Convert to FPLD.
3. Or right-click the row and select Convert to FPLD.

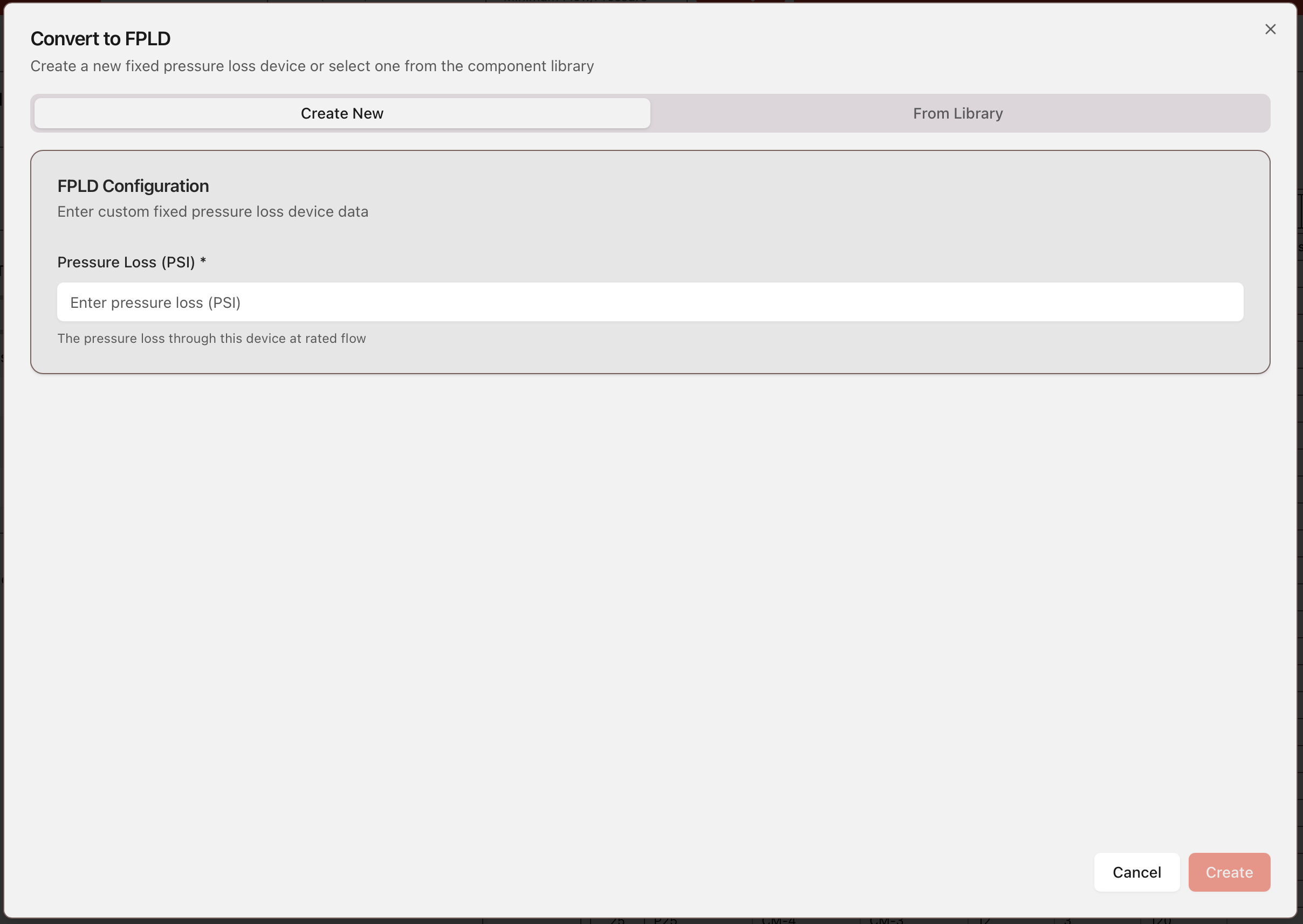

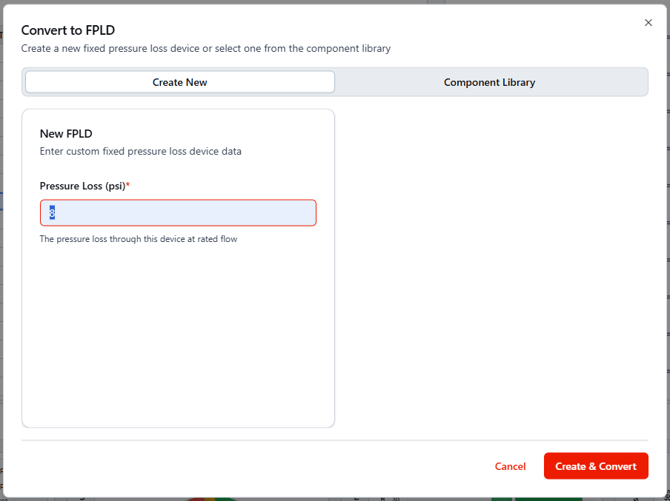

Create a custom FPLD

4. To add a custom FPLD, input the required data under the Create New tab.

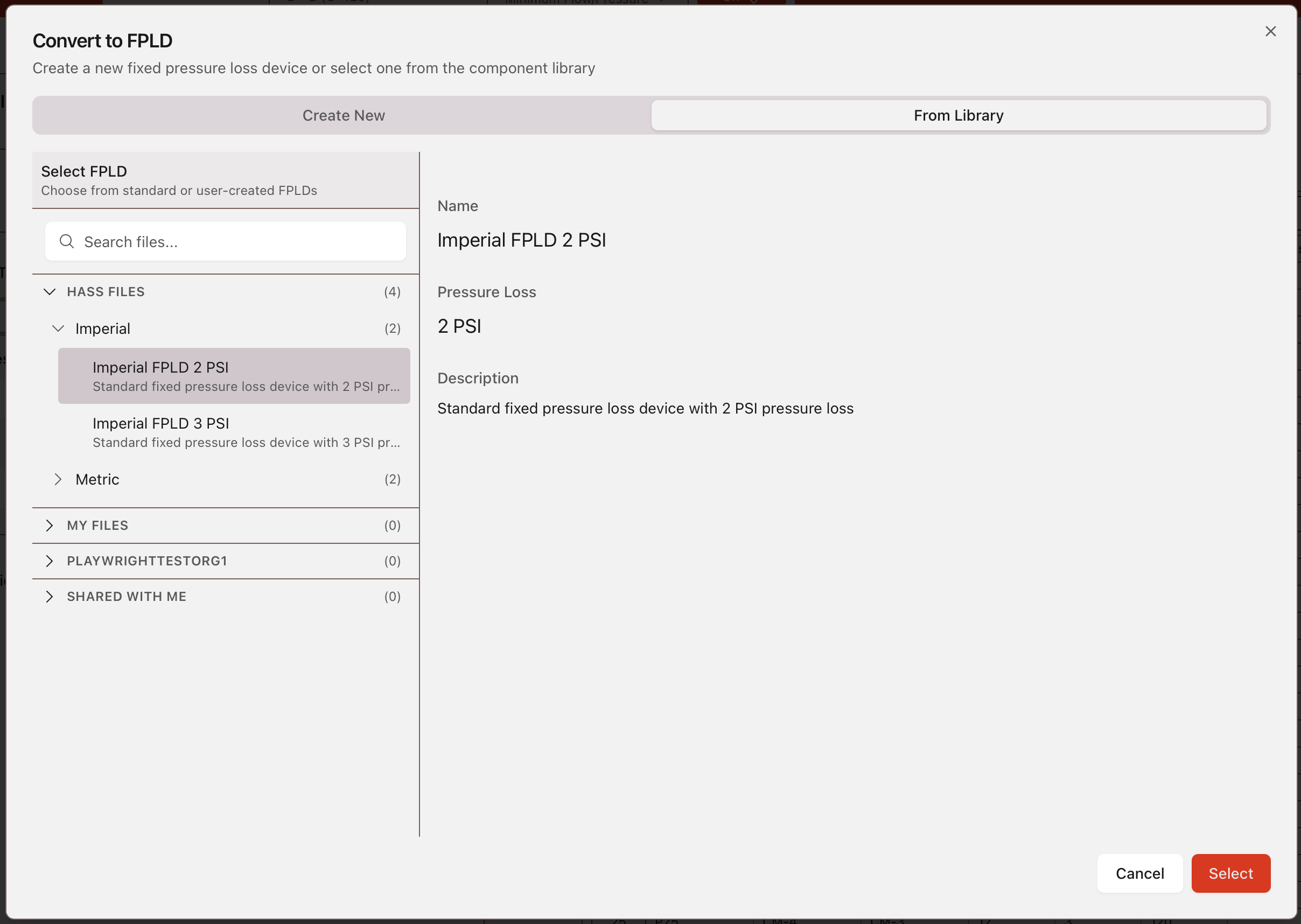

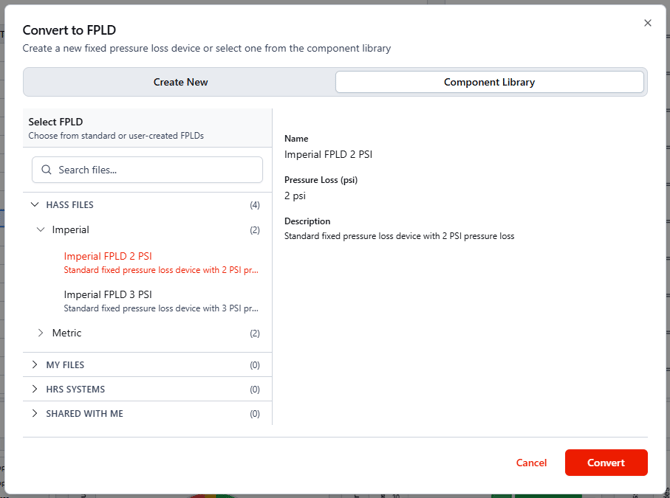

Choose a FPLD from the library

5. To add a FPLD from the FPLD library, either a default HASS FPLD or a previously entered custom FPLD, select the desired FPLD from the From Library tab.
