The Results Dashboard contains up to seven modules that together validate hydraulic performance for the selected run.

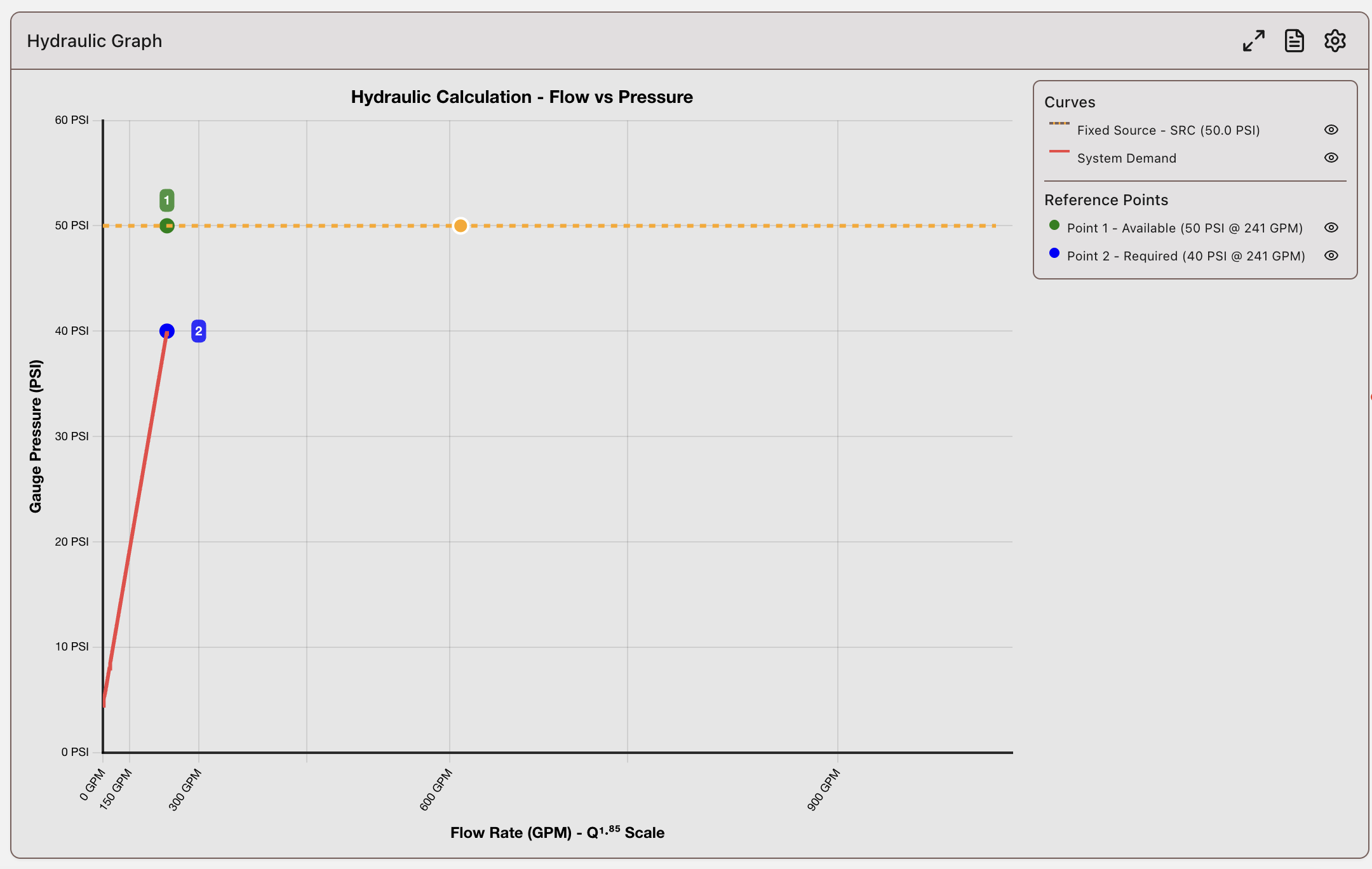

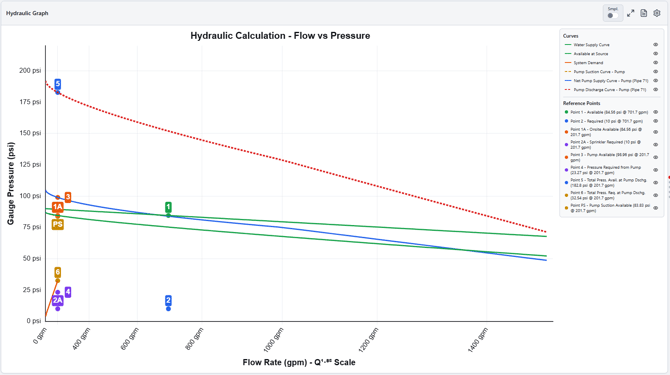

Hydraulic graph
Visualizes the relationship between system demand and available supply for the selected run.

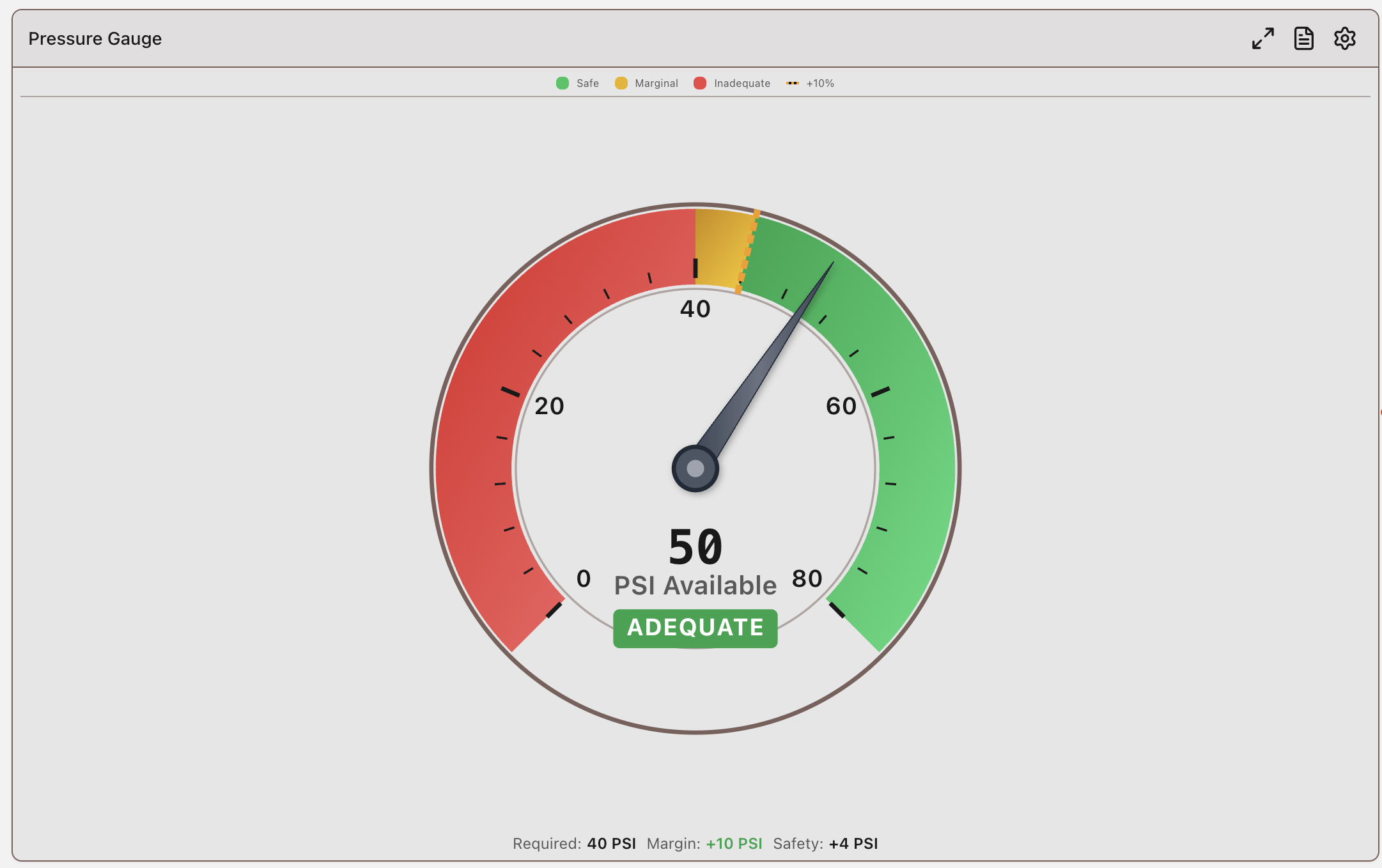

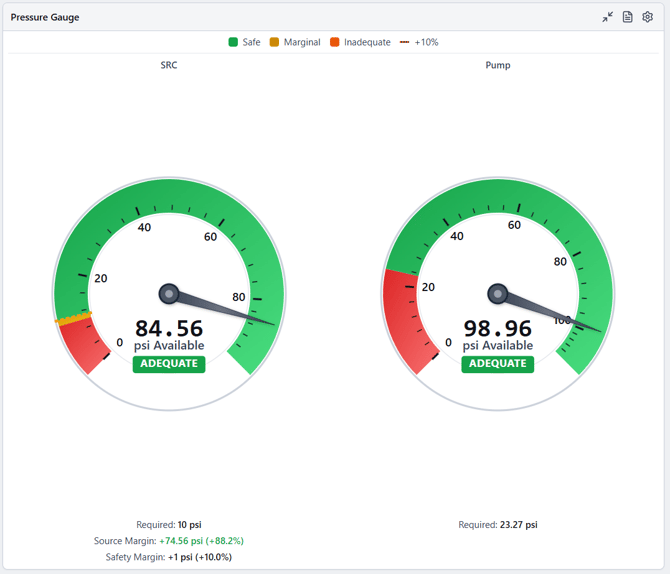

Pressure gauge
Displays pressure-focused values for quick validation of system pressure behavior.

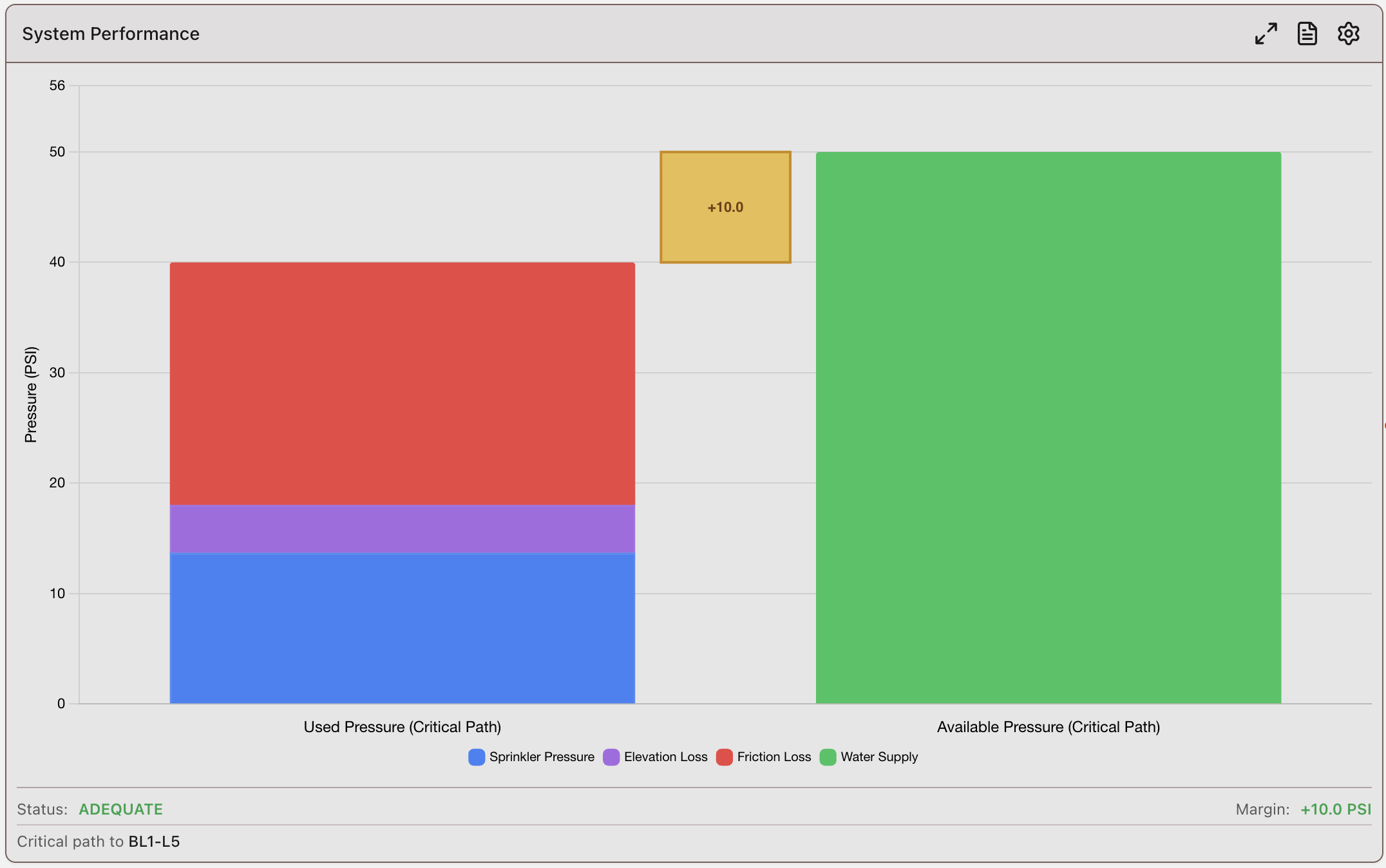

System performance
Summarizes key performance values for the calculated system.

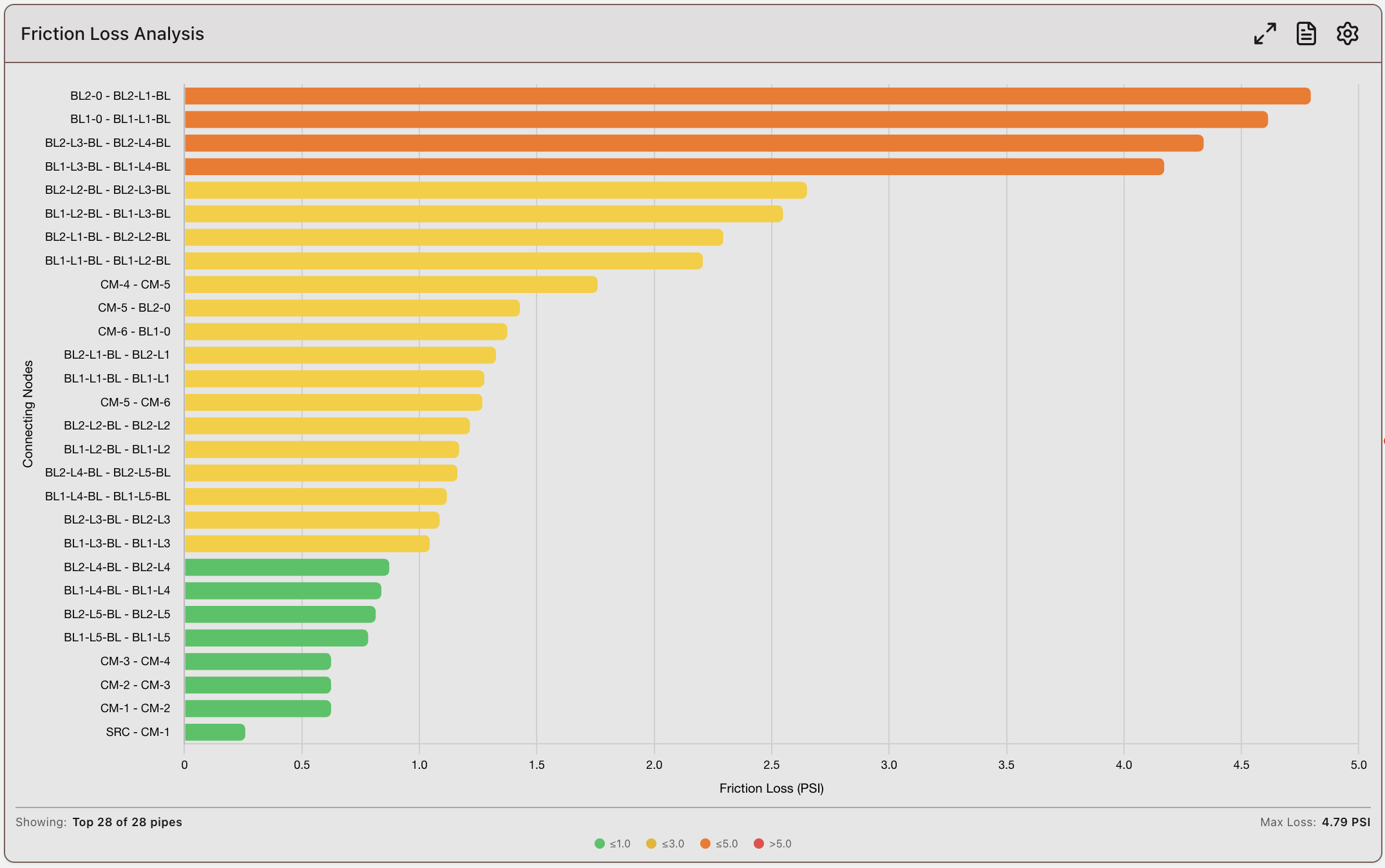

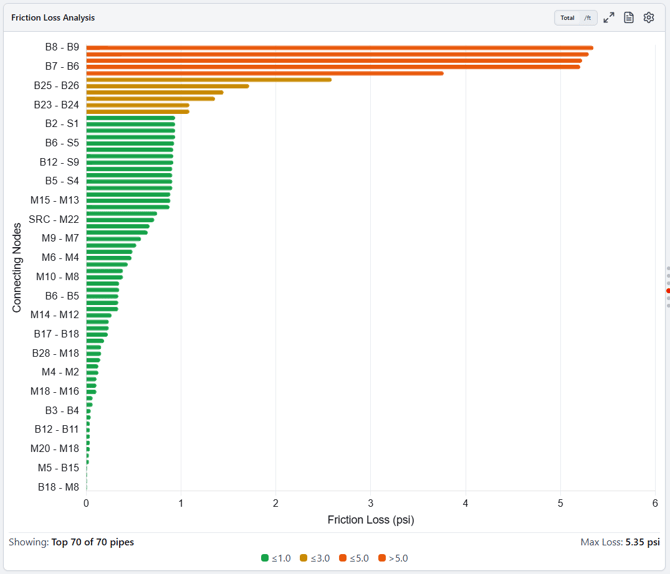

Friction loss analysis
Highlights where friction losses are concentrated across the model.

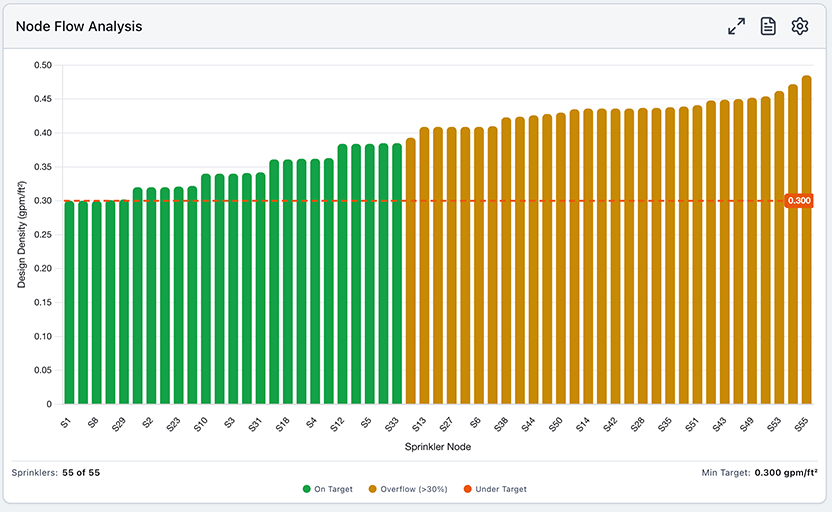

Node Flow Analysis
Shows the design density delivered at each sprinkler node.

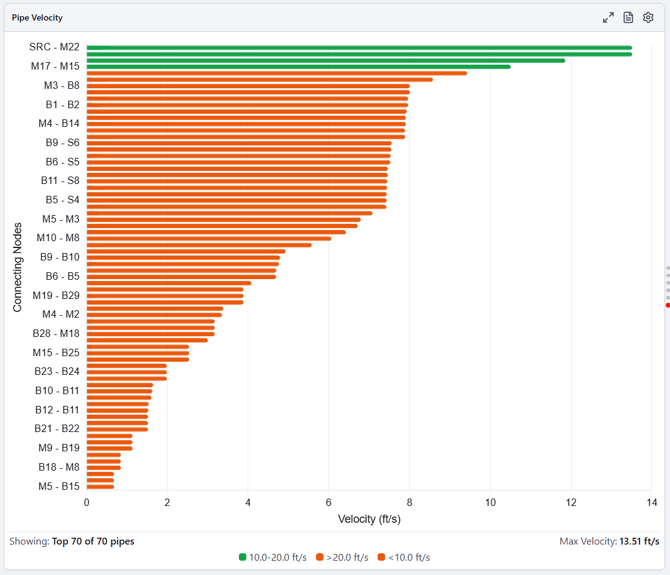

Pipe Velocity
Shows pipes with highest velocities across the model.

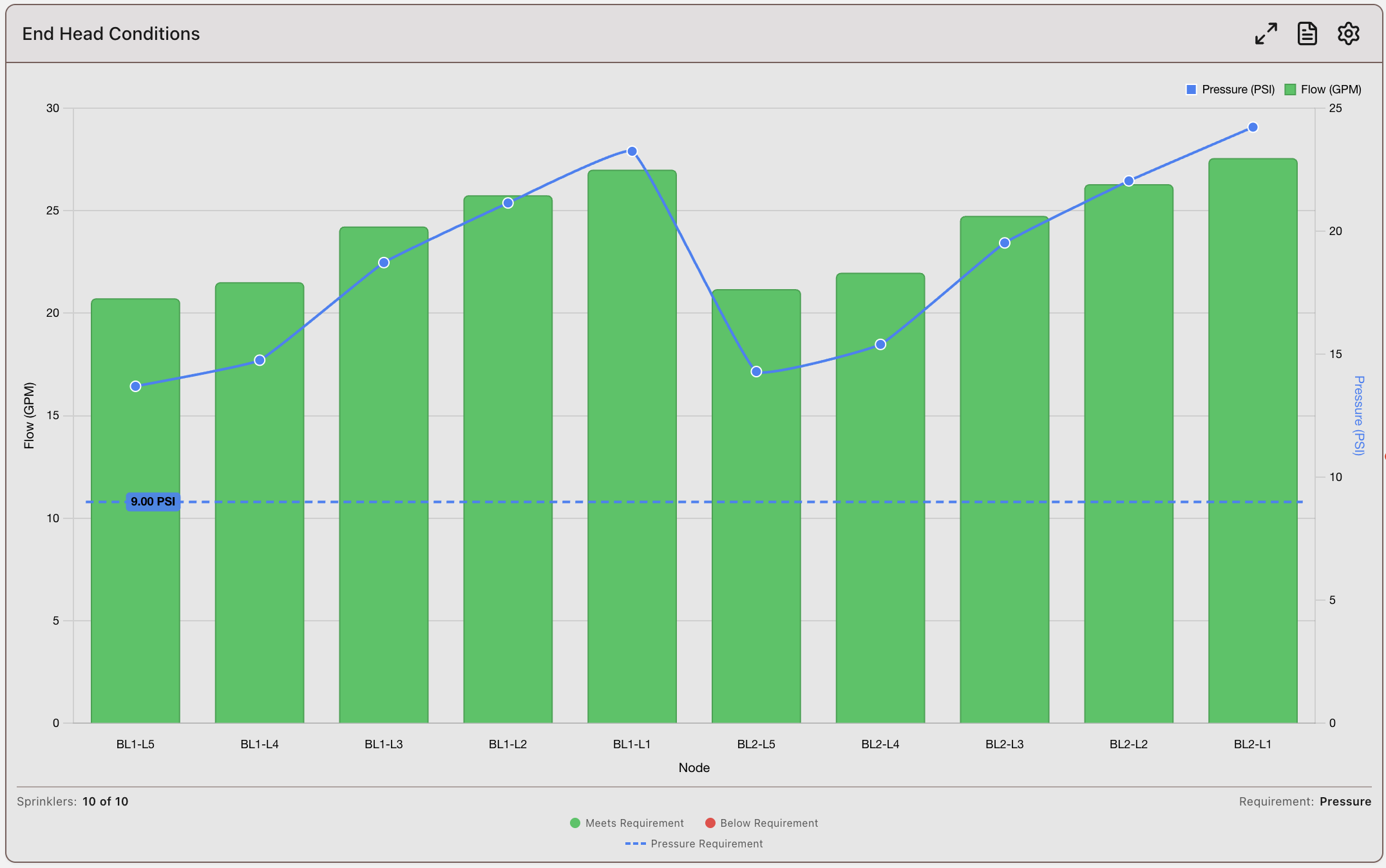

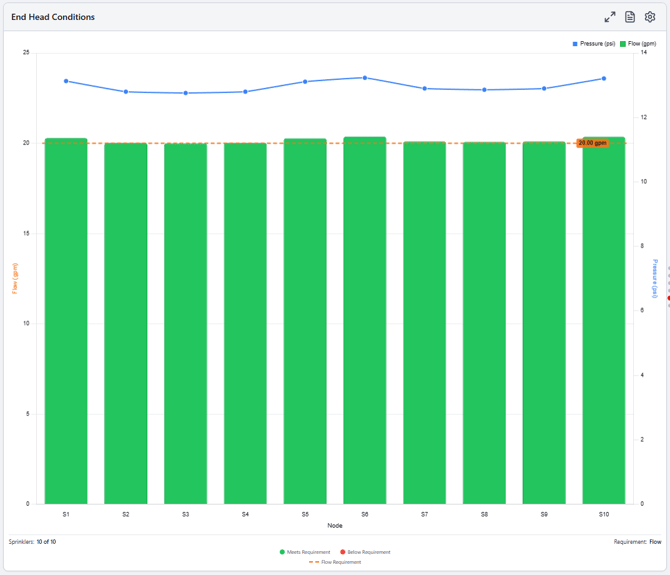

End head conditions
Shows end-head condition checks for the selected criteria.

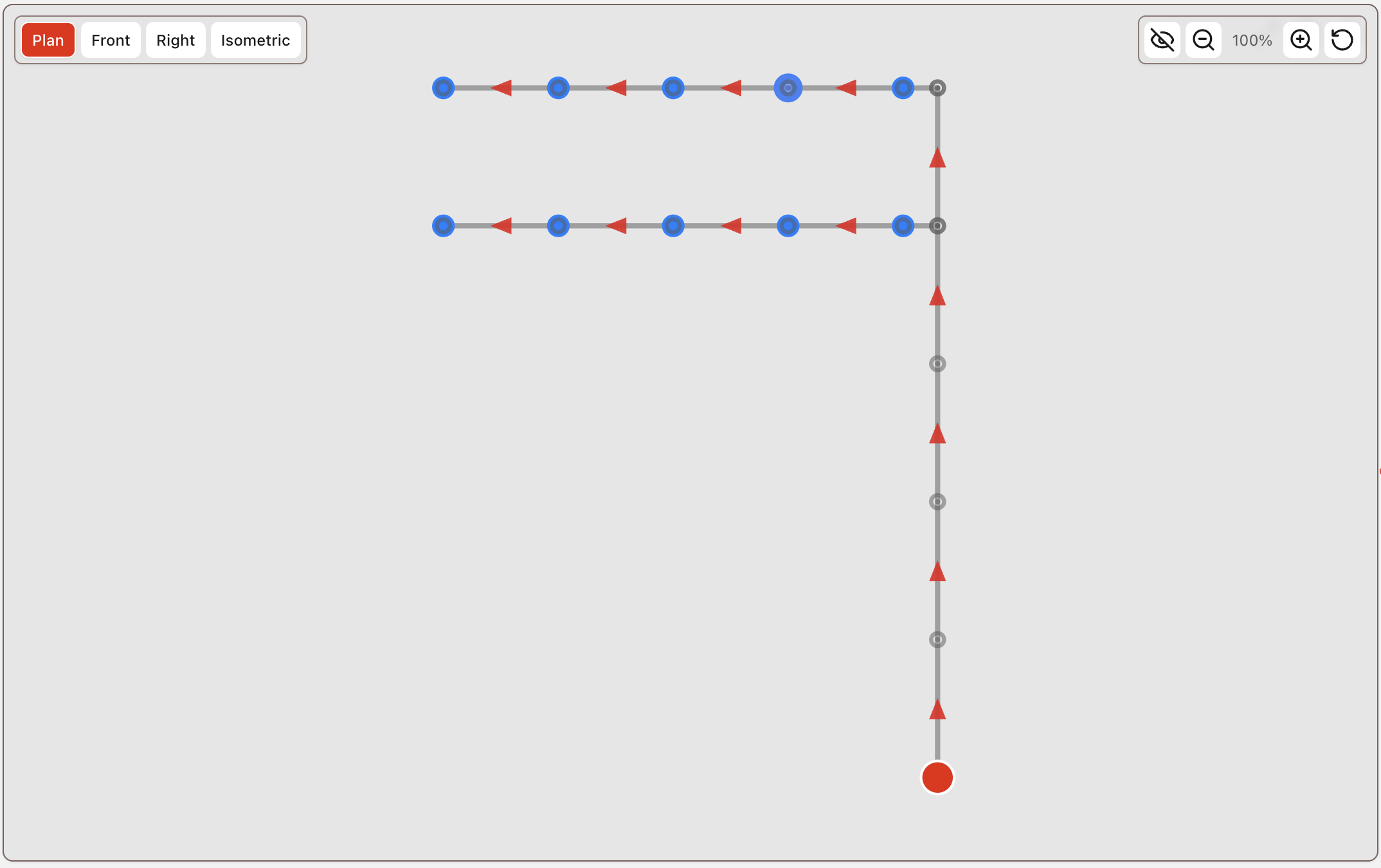

Isometric drawing
Displays a 2D system drawing view aligned to the active calculation.
